WATER RIPPLE STAINLESS STEEL SHEET
WHAT IS WATER RIPPLE STAINLESS STEEL SHEET ?
Stainless steel water ripple sheet is a kind of decorative stainless steel sheet. The raw material is various colored mirror stainless steel. The mirror stainless steel sheet is punched through different water ripple molds to make a stainless steel embossed decorative plate. Because the shape of stamping is similar to water waves and the effect of mirror reflection, it is called stainless steel water ripple sheet.

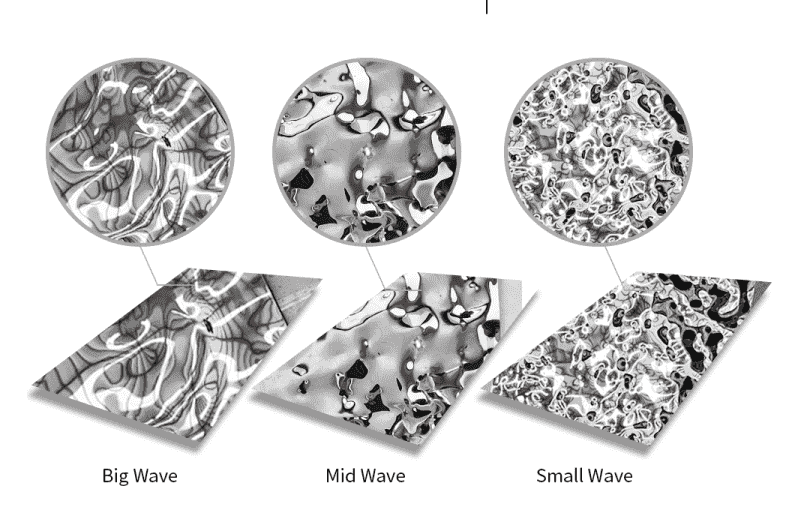

Water ripples are divided into small ripples, medium ripples, and large ripples according to the size of the ripples.The thickness of corrugated sheets can be customized according to customer requirements, generally between 0.3-3.0 mm, the maximum thickness of small corrugations is 2.0 mm, and the maximum thickness of medium and large corrugations is 3.0 mm. In general, 0.3mm - 1.2mm is best for indoor applications such as ceilings and wall panels, while 1.5mm -3.0mm is best for indoor applications such as building exteriors.
Types of stainless steel water ripple sheets
Garda
![Garda-Copper-260x185](/uploads/Garda-Copper-260x185.jpg)
Garda-Copper
![Garda-Blue-260x185](/uploads/Garda-Blue-260x185.jpg)
Garda-Blue
![GARDA NATURAL](/uploads/GARDA-NATURAL.jpg)
Garda-natural
![Garda-Gold-260x185](/uploads/Garda-Gold-260x185.jpg)
Garda-Gold
![Garda-Bronze-260x185](/uploads/Garda-Bronze-260x185.jpg)
Garda-Bronze
Geneva
![Geneva-Copper-260x185](/uploads/Geneva-Copper-260x185.jpg)
Geneva-Copper
![Geneva-Blue-260x185](/uploads/Geneva-Blue-260x185.jpg)
Geneva-Blue
![GENEVA NATURAL](/uploads/GENEVA-NATURAL.jpg)
Geneva-natural
![Geneva-Gold-260x185](/uploads/Geneva-Gold-260x185.jpg)
Geneva-Gold
![Geneva-Bronze-260x185](/uploads/Geneva-Bronze-260x185.jpg)
Geneva-Bronze
Lomond
![Lomond-Copper-260x185](/uploads/Lomond-Copper-260x185.jpg)
Lomond-Copper
![Lomond-Blue-260x185](/uploads/Lomond-Blue-260x185.jpg)
Lomond-Blue
![LOMOND NATURAL](/uploads/LOMOND-NATURAL.jpg)
Lomond-natural
![Lomond-Gold-260x185](/uploads/Lomond-Gold-260x185.jpg)
Lomond-Gold
![Lomond-Bronze-260x185](/uploads/Lomond-Bronze-260x185.jpg)
Lomond-Bronze
Malawi
![Malawi-Copper-260x185](/uploads/Malawi-Copper-260x185.jpg)
Malawi-Copper
![Malawi-Blue-260x185](/uploads/Malawi-Blue-260x185.jpg)
Malawi-Blue
![MALAWI NATURAL](/uploads/MALAWI-NATURAL.jpg)
Malawi-natural
![Malawi-Gold-260x185](/uploads/Malawi-Gold-260x185.jpg)
Malawi-Gold
![Malawi-Bronze-260x185](/uploads/Malawi-Bronze-260x185.jpg)
Malawi-Bronze
Oregon
![Oregon-Copper-260x185](/uploads/Oregon-Copper-260x185.jpg)
Oregon-Copper
![Oregon-Blue-260x185](/uploads/Oregon-Blue-260x185.jpg)
Oregon-Blue
![OREGON NATURAL](/uploads/OREGON-NATURAL.jpg)
Oregon-natural
![Oregon-Gold-260x185](/uploads/Oregon-Gold-260x185.jpg)
Oregon-Gold
![Oregon-Bronze-260x185](/uploads/Oregon-Bronze-260x185.jpg)
Oregon-Bronze
Pacific
![Pacific-Copper-260x185](/uploads/Pacific-Copper-260x185.jpg)
Pacific-Copper
![Pacific-Blue-260x185](/uploads/Pacific-Blue-260x185.jpg)
Pacific-Blue
![Pacific NATURAL](/uploads/Pacific-NATURAL.jpg)
Pacific-natural
![Pacific-Gold-260x185](/uploads/Pacific-Gold-260x185.jpg)
Pacific-Gold
![Pacific-Bronze--260x185](/uploads/Pacific-Bronze-260x185.jpg)
Pacific-Bronze
Superior
![Superior-Copper-260x185](/uploads/Superior-Copper-260x185.jpg)
Superior-Copper
![Superior-Blue-260x185](/uploads/Superior-Blue-260x185.jpg)
Superior-Blue
![SUPERIOR NATURAL](/uploads/SUPERIOR-NATURAL.jpg)
Superior-natural
![Superior-Gold-260x185](/uploads/Superior-Gold-260x185.jpg)
Superior-Gold
![Superior-Bronze-260x185](/uploads/Superior-Bronze-260x185.jpg)
Superior-Bronze
Victoria
![victoria-copper-260x185](/uploads/victoria-copper-260x185.jpg)
Victoria-Copper
![victoria-blue-260x185](/uploads/victoria-blue-260x185.jpg)
Victoria-Blue
![VICTORIA NATURAL](/uploads/VICTORIA-NATURAL.jpg)
Victoria-natural
![victoria-gold-260x185](/uploads/victoria-gold-260x185.jpg)
Victoria-Gold
![victoria-bronze-260x185](/uploads/victoria-bronze-260x185.jpg)
Victoria-Bronze
Product Information
Surface |
Stamp Finish |
|||
Grade |
201 |
304 |
316 |
430 |
Form |
Sheet only |
|||
Material |
Stainless steel |
|||
Thickness |
0.3-3.0 mm |
|||
Width |
1000mm, 1220mm, 1250mm, 1500mm & customized |
|||
Length |
2000mm, 2438mm, 3048mm & customized |
|||
Type |
2B Stamp, BA/6K Stamp, HL/No.4 Stamp, etc. |
|||
Patterns |
2WL, 5WL, 6WL, Ripple, Honeycomb, Pearl, etc. |
|||
Remarks |
Feel free to contact us for more patterns. Your own stamped stainless steel design is welcome. Particular dimensions are accepted on request. Customized specific cut-to-length, laser-cut, and bending are acceptable. |
If you want to know more about the patterns of water ripple stainless steel sheet, please download our product catalogue
Application places of stainless steel water ripple sheet
1. Ceiling, used as a suspended ceiling.
![celling sheet](/uploads/1-81.png)
2. Wall, is generally used in a large area.
![2](/uploads/微信图片_202308081648043.png)
3. Other facades: It can also be used on furniture cabinets and other facades.
![微信截图_20230808165732](/uploads/微信截图_202308081657322.png)
![微信截图_20230808165759](/uploads/微信截图_202308081657592.png)
![page-2_06](/uploads/page-2_06.jpg)
The water ripple stainless steel sheets are widely used as decorative metal sheets for buildings. They enhance interiors and exteriors, such as lobby walls, ceilings, and cladding. Elevators, front desks, and doors can also benefit. Each sheet features unique denting patterns, allowing customization of color, pattern, and depth to match your style. These sheets offer rust and corrosion resistance while maintaining the properties of plain stainless steel.
Product Packing Ways
![Water ripple sheet 6_看图王](/uploads/Water-ripple-sheet-6_看图王.jpg)
Protective Film |
1. Double layer or single layer. 2. Black and white PE film/Laser (POLI) film. |
Packing Details |
1. Wrap with waterproof paper. 2. Cardboard encase all packs of the sheet. 3. The strap aligned with edge protection. |
Packing Case |
Strong wooden case, metal pallet and customized pallet are acceptable. |
