A stainless steel checkered plate is a type of metal sheet or plate that features a pattern of raised diamonds or lines on one surface. This pattern is known as a checker or diamond pattern. The raised pattern provides added grip and traction, making it particularly useful in industrial and commercial applications where slip resistance is important.

Brand Name: Hermes Steel

Place Of Origin: Guangdong ,China(Mainland)

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Delivery Time: Wthin 15-20 Working days after received deposit or LC

Package Detail : Standard Sea-Worthy Packing

Price Term: CIF CFR FOB EX-WORK

Sample: Provide

Send email to us Download Catalog

Product Detail

About Hermes Steel

Product Tags

What Is Stainless Steel Checker Plate?

Generally, Stainless steel checkered plate is manufactured by cold rolling sheet and hot rolling stainless steel sheet..stainless steel checker plate is made of stainless steel through an embossing process. It has diamond-shaped patterns on the surface to improve its decorative effect and anti-slip performance. It is also called diamond plate, tread plate, and chequer plate. Due to the excellent corrosion resistance and slip resistance of the SS checker plate, it has been used in many industries. The pattern design is also constantly updated and improved. There are dozens of patterns to choose from. The most popular patterns are chequered patterns, diamond patterns, lentil patterns, leaves patterns, etc.

There are two different production processes. A kind of stainless steel checker plate is rolled by the rolling mill when producing stainless steel. The thickness is about 3-6mm, and it is annealed and pickled after hot rolling. The process is as follows:

Stainless steel billet → Hot rolling → Hot annealing and pickling line → Leveling machine, tension leveler, polishing line → Cross-cutting line → Hot-rolled stainless steel checkered plate.

This kind of checker plate is flat on one side and patterned on the other. It is more commonly used in the chemical industry, railway vehicles, platforms, and other applications where strength is required.

The other kind of stainless steel diamond plate is made of hot-rolled or cold-rolled stainless steel by mechanical stamping. These products are concave on one side and convex on the other side. They are often used for decoration purposes.

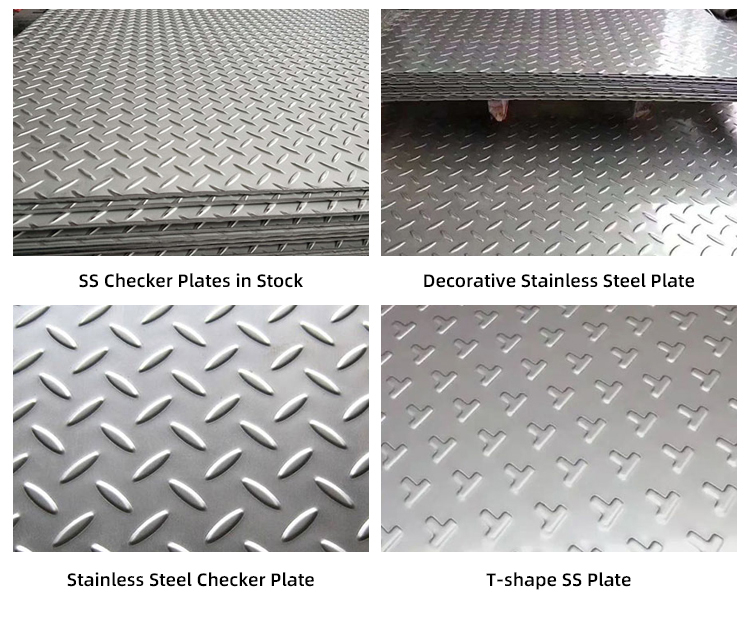

5-bars Checker Plate SS Checker Plate

Checkered plate stainless steel comes in diverse sizes.

The most popular size is 48" by 96", and 48" by 120", and 60" by 120" are also common sizes. The thickness ranges from 1.0mm to 4.0mm.

Item	Stainless Steel Checker Plate
Raw Material	Stainless steel sheet (hot rolled and cold rolled)
Grades	201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc.
Thickness	1mm-10mm
Width	600mm – 1,800mm

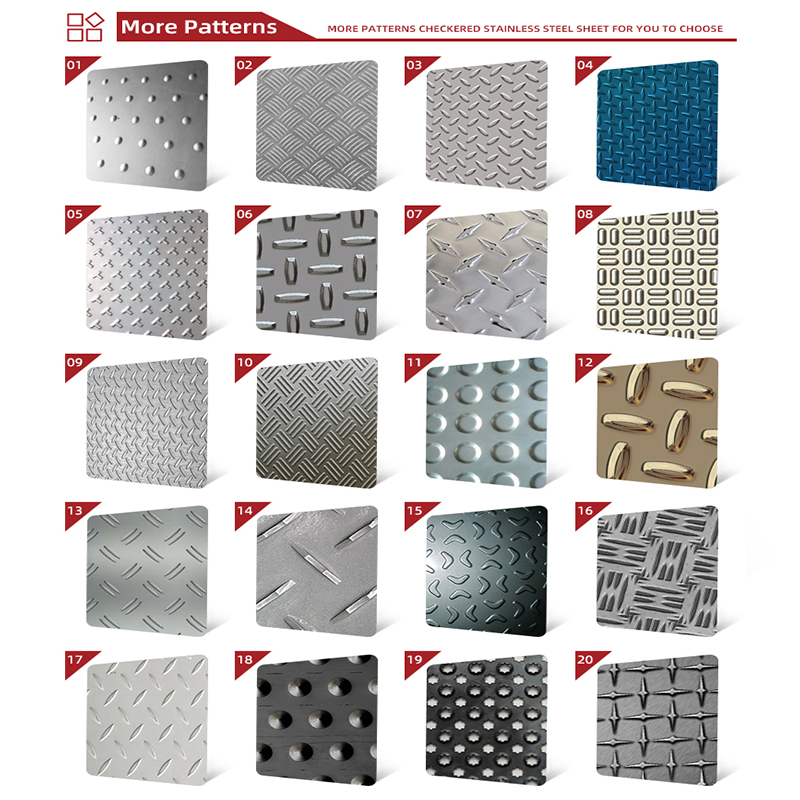

Pattern	Chequered pattern, diamond pattern, lentil pattern, leaves pattern, etc.
Finish	2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc.
Package	Strong wooden cases, metal pallets, and customized pallets are acceptable.

Common Grades of Stainless steel Checker Plate

Same as other stainless steel products, the stainless steel checker plate also has many grades to choose from. Here we make a brief table sheet that introduces the common grades of the SS checked plate for you

American Standard	European Standard	Chinese Standard	Cr Ni Mo C Cu Mn
ASTM 304	EN1.4301	06Cr19Ni10	18.2 8.1 – 0.04 – 1.5
ASTM 316	EN1.4401	06Cr17Ni12Mo2	17.2 10.2 12.1 0.04 – –
ASTM 316L	EN1.4404	022Cr17Ni12Mo2	17.2 10.1 2.1 0.02 – 1.5
ASTM 430	EN1.4016	10Cr17	Add.188.022.6.1345

1. Excellent Corrosion Resistance； Resistant to extremely high temperature

The checked plate made of stainless steel is more resistant than ordinary carbon and galvanized steel sheets. Besides, the Cr element in stainless steel improves the atmospheric corrosion resistance, especially in chloride and alkaline corrosion.

2. Great Anti-slipping Performance

One of the biggest characteristics of a stainless steel checker plate is that it has good anti-skid features due to concave and convex patterns. This can provide all-around traction and make it very practical.

3. High Workability

The plate is easy to weld, cut, form, and machine with proper equipment. In addition, this processing procedure does not damage its mechanical properties.

4. Attractive Finish； A Very rigid surface can stand heavy wear and tear.

It has a high-quality modern appearance and strong metallic texture. The silver-grey finish and raised diamond pattern make it more attractive and decorative. Besides, it has many different patterns to choose from to meet different application needs.

5. Long Lifetime & Easy to Clean

It has a long lifespan of more than 50 years. Also, it is easy to clean and almost maintenance-free.

Because of its unique features and anti-skip texture, stainless steel checker plates have a wide range of applications worldwide. Especially, it is suitable for food machinery, pharmaceutical machinery, electronic weighing, refrigerators, cold storage, buildings, water heaters, bathtubs, dinnerware, packaging, transmission belts, automatic doors, and car systems. It includes:

1. Construction: floor decking sheets, roofing panels, wall cladding, garages, storage system, etc.

2. Industry: engineer processing, loading ramps, packing, printing, logistics equipment, etc.

3. Decoration: elevator cabs, building curtain walls, cold storage, ceilings, special ornamental projects, etc.

4. Transportation: cargo trailer, the interior of vehicles, automobile stairs, subway station, trailer beds, etc.

5. Road Protection: walkways, stair pedals, trench covers, pedestrian bridges, escalator approaches, etc.

6. Other Uses: store signs, displays, bars, toolboxes, counters, emergency fire landings, food preparation areas, dinnerware, cupboards, water heaters, kitchen utensils, ship deck, etc.

A stainless steel checker plate keeps the high corrosion resistance and strength that stainless steel provides. Besides, its raised tread pattern design provides excellent skid resistance to increase friction. These features make it popular in many applications, including buildings, decoration, rail transit, machinery manufacturing, and other industries. Wanzhi Steel stocks stainless steel diamond plates available in different grades, patterns, sizes, etc. Also, we offer value-added services, such as Laser Cutting, Sheet Blade Cutting, Sheet Grooving, Sheet Bending, etc. Welcome to contact us for more details!

Get A Wholesale Stainless Checkered Plate Price

At Grand Metal, we stock a full range of checker plates and sheets in stainless steel. As a wholesale supplier, we have checker plates available in different sizes, grades, and pattern design to meet different applications diamond plate is more resistant to corrosion. It is also the best choice for the food and beverage industry. Also, it has a bright and beautiful surface. If you are looking for a cost-effective solution and want to know more details, please contact us now!
